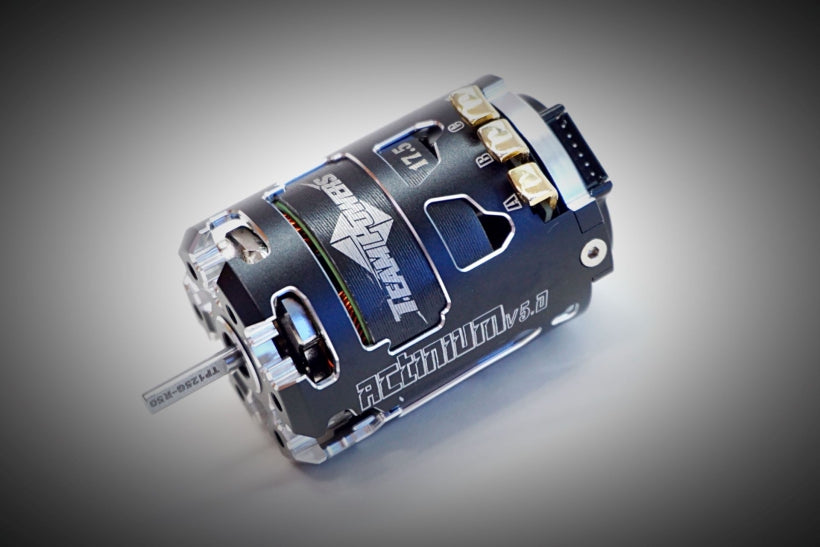

•Revised assembly design for improved sensor accuracy.
•Revised stator plate profile with 3 screws holes sealed to improve magnetic field consistency and efficiency.
•Traditional three long assembly screws replaced with short screws mounted to side of the end bell.
•Copper wiring purity increased for minimized resistance. Hand wound for maximum accuracy and efficiency.
•Revised rotor magnetic material for improved strength, efficiency and extend the fade out time.
•Motor can machining profiles slightly revised from V4 to enhance convection cooling.
•Collector ring machined from proprietary alloy resulting in minimal resistance and maximum heat dissipation.
•Revised stator plate profile with 3 screws holes sealed to improve magnetic field consistency and efficiency.
•Traditional three long assembly screws replaced with short screws mounted to side of the end bell.
•Copper wiring purity increased for minimized resistance. Hand wound for maximum accuracy and efficiency.
•Revised rotor magnetic material for improved strength, efficiency and extend the fade out time.
•Motor can machining profiles slightly revised from V4 to enhance convection cooling.
•Collector ring machined from proprietary alloy resulting in minimal resistance and maximum heat dissipation.
Specifications:
•Based on IFMAR/ROAR/EFRA/BRCA design specifications.
•Modified winds, 13.5T, 17.5T, 21.5T motors are all ROAR approved ( BRCA pending).
•Motor Dimensions (Diameter x Length) 35.8mm x 52.2mm.
•Shaft Diameter: 3.17mm
•Magnet Dimensions
12.3 x 5x 24.2mm(3.5T~9.5T),
12.5 x7.2x25.2mm (10.5T~21.5T),
12.3 x7.2x25.2mm (25.5T)
Variable timing end bell
•Weight: ~150g (varies between turns)
•Recommended RC Model Car: 1:10 touring, Buggy, MINI Car.
Available Turns: 4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T,25.5T - 3.5T order by request.
•Modified winds, 13.5T, 17.5T, 21.5T motors are all ROAR approved ( BRCA pending).
•Motor Dimensions (Diameter x Length) 35.8mm x 52.2mm.
•Shaft Diameter: 3.17mm
•Magnet Dimensions
12.3 x 5x 24.2mm(3.5T~9.5T),
12.5 x7.2x25.2mm (10.5T~21.5T),
12.3 x7.2x25.2mm (25.5T)
Variable timing end bell
•Weight: ~150g (varies between turns)
•Recommended RC Model Car: 1:10 touring, Buggy, MINI Car.
Available Turns: 4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T,25.5T - 3.5T order by request.
